Sharkbuoy Tough: GNSS Tides, Indestructible

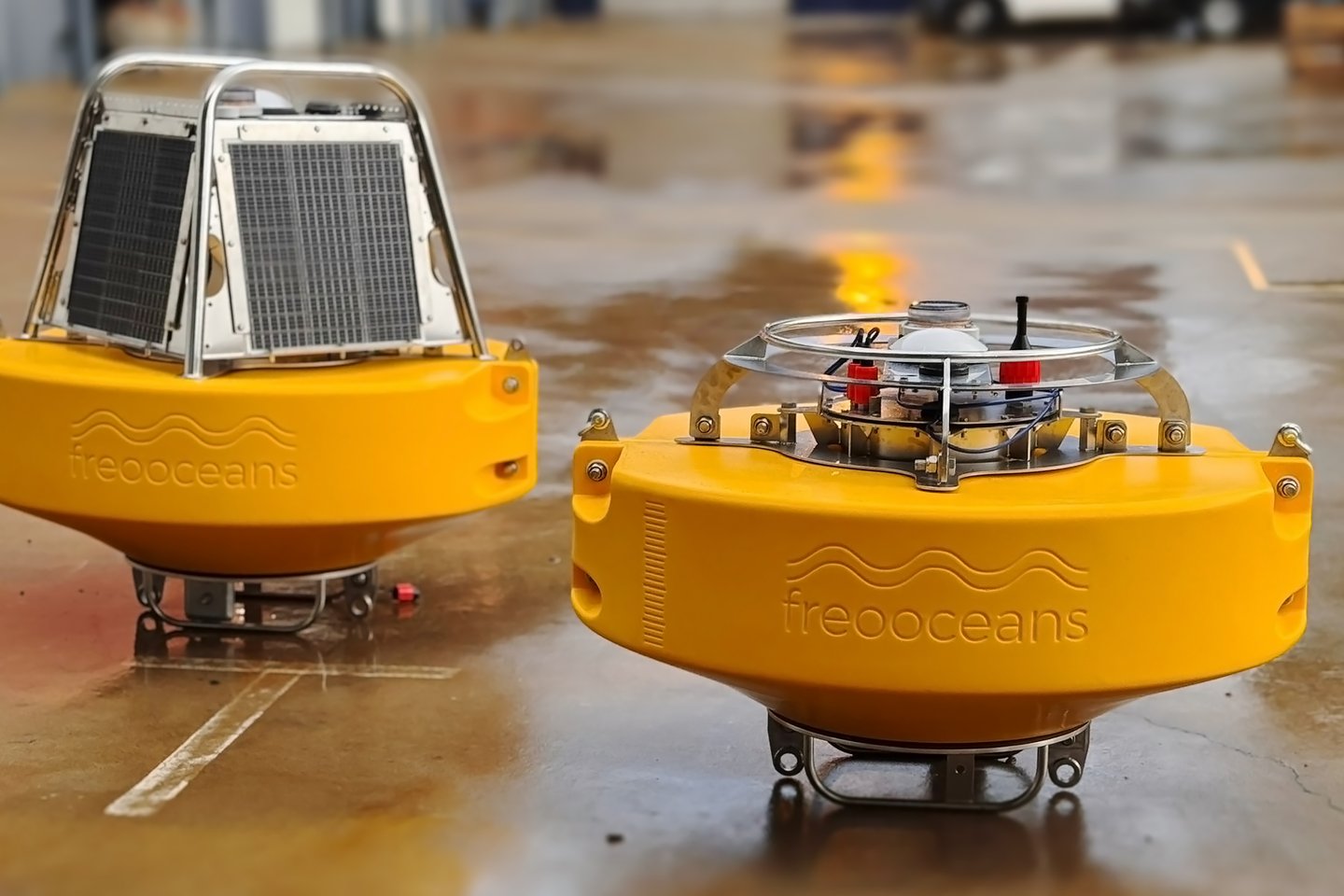

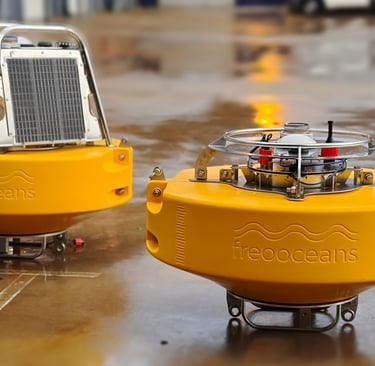

Introducing the SharkBuoy Tough—our latest innovation designed for shorter deployments in the most challenging marine conditions. Building upon the trusted design of our original SharkBuoy, the Tough model eliminates the solar panel, which was the most exposed part of the original design. This buoy is not intended for long deployments but can handle rough treatment during deployment and recovery. Recharge in 3 hours and go again!

We've designed the Sharkbuoy with a focus on reliability, toughness, and ease of use. While enhancing durability by removing the solar panel, the SharkBuoy Tough retains all the mature and proven components from the original buoy, including Marinestar-enabled Septentrio GNSS, a tilt sensor, an Iridium modem, a programmable data logger, Wi-Fi connectivity, and a bullet-proof enclosure.

Freooceans sharkobuoy hipp tide GPS buoy
Freooceans sharkobuoy hipp tide GPS buoy

Features Include:

  • No Solar Panels

  • 1 week power on batteries

  • 3 Hour Fast Charge time on deck

  • Sharkbuoy Tough Foam Filled, High Density Polyethylene Hull

  • AsteRx-m3 Fg Sepentrio Multi-frequency GNSS

  • 3-axis Tilt Sensor  and tilt data logging

  • GNSS data logging to 128 GB flash memory

  • Marinestar G4+ tilt corrected water level logged in ASCII to 32GB flash memory

  • Wi-Fi buoy access to raw and processed data

  • IALA-compliant Sealite SL15 Lantern

  • Submergible enclosure

  • Iridium Modem with GNSS tracker

  • Subsea plugs and switches

  • Rated Lifting Lugs and Shackles

    Built like a tank in Fremantle, Western Australia

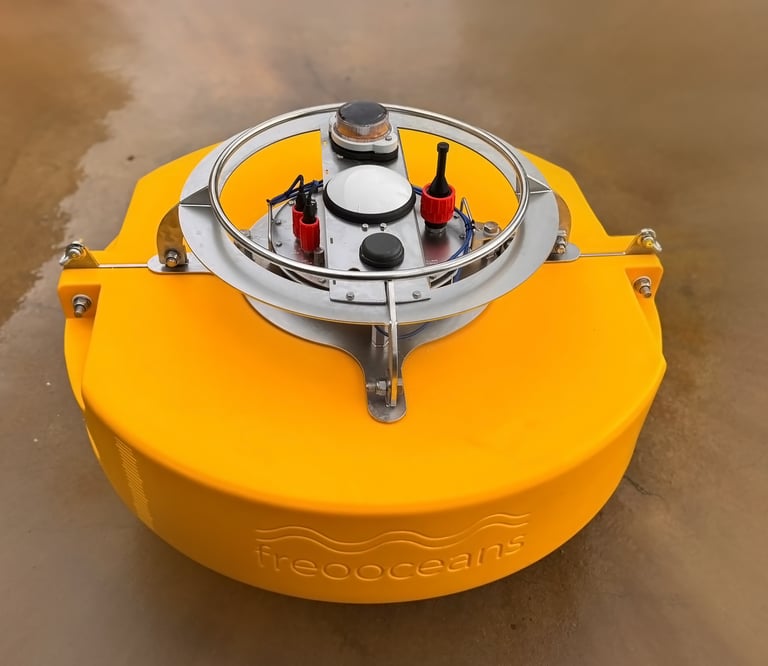

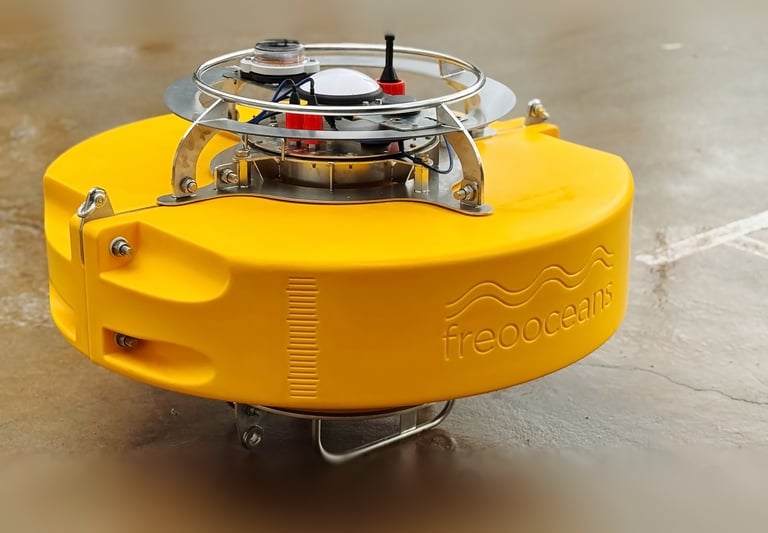

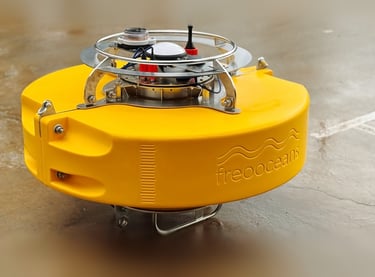

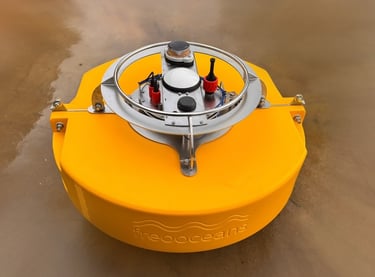

The newly developed Sharkbuoy Tough

(in production 2024)

Sharkbuoy tough...

Developed based on years of experience

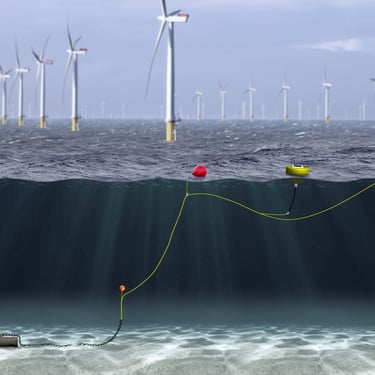

The buoy can be attached directly to a mooring or, in high-current scenarios, a Norwegian buoy can be rigged to take any load off the Sharkbuoy's GNSS sensor (as shown). Every buoy comes with a 12kg counterweight chain that should always be used to maintain a constant buoy draft.

To ensure easy recovery via a grapple or hook, we recommend rigging the twin small floats at least 20m from the Sharkbuoy. For optimal performance, we suggest using a 15-25 kg anchor or 100kg clump weight (depending on currents and seabed type).

The Sharkbuoy can be ordered as a standalone unit or with a mooring system customized to the required water depth. Our buoy and mooring system are designed for easy recovery using a capstan or drum winch, with quick-release floats that enable the entire mainline and chain to pass through a wide block or onto a winch drum.

Metocean data Tide Gauge Barometric Buoy Tide measurements Tide Buoy GPS Buoy GNSS Buoy hydroid Wave
Metocean data Tide Gauge Barometric Buoy Tide measurements Tide Buoy GPS Buoy GNSS Buoy hydroid Wave

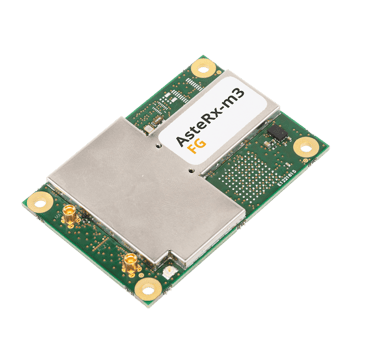

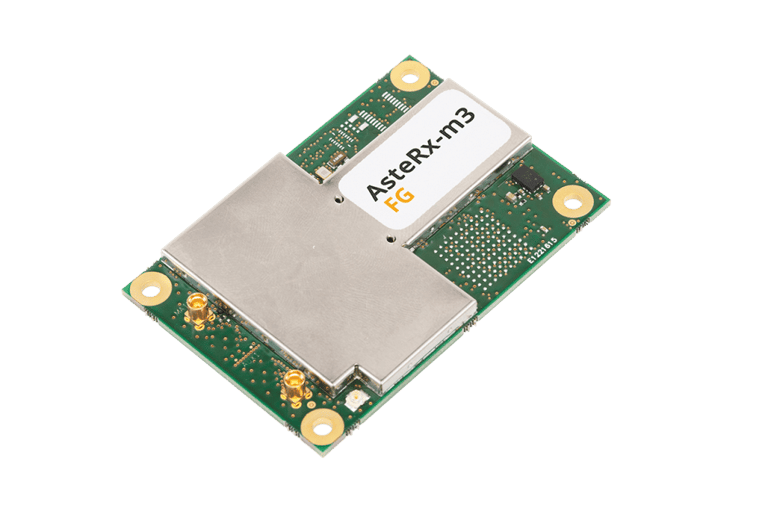

The Sharkbuoy is equipped with the AsteRx-m3 Fg, a cutting-edge receiver designed specifically for marine applications, ensuring accurate and reliable tide measurements.

  • Flexibility of use and easy-to-integrate: The AsteRx-m3 Fg offers flexibility of use and easy integration, allowing for seamless integration with the Sharkbuoy and other equipment.

  • Best SWaP on the market (Size, Weight and Power): The AsteRx-m3 Fg offers the best SWaP on the market, making it an ideal choice for the Sharkbuoy and other applications that require high-performance GNSS.

  • AIM+ anti-jamming, anti-spoofing monitoring system as part of the GNSS+ Technology Suite: The AIM+ anti-jamming and anti-spoofing monitoring system is part of the AsteRx-m3 Fg's GNSS+ Technology Suite, providing enhanced security and protection against interference.

  • Full-constellation, triple-frequency satellite tracking: The AsteRx-m3 Fg offers full-constellation, triple-frequency satellite tracking, providing the highest level of accuracy and reliability.

  • High update rate with low latency: The AsteRx-m3 Fg offers a high update rate with low latency, allowing for real-time monitoring and analysis of tide measurements.

  • The AsteRx-m3 Fg provides high-accuracy positioning at sea with Fugro Marinestar PPP corrections, ensuring the most accurate and reliable tide measurement data possible.

GNSS Positioning you can count on...

The GNSS web GUI on the Sharkbuoy can be accessed from a laptop via wifi. The overview page on the web GUI is shown below:

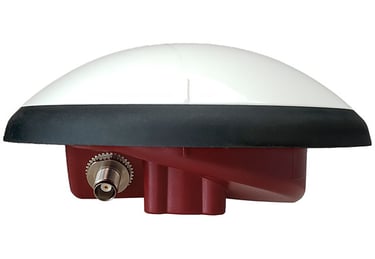

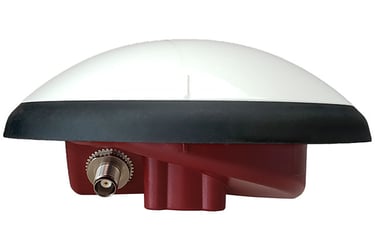

We have been through a few antennas in our time, that couldn't stand up to the conditions...the Tallysman Verostar 6037L exceptional build is the perfect match for Sharkbuoy

  • Rubber Bumper built for a tough life

  • Plastic coated base the only exposed metal is the connector

  • Stainless steel connector no corrosion issues here

Finally, an antenna tough enough for extreme conditions...

For pricing contact our sales department at Sales@freooceans.com.au

or call on +61 422 063 459
